DM 50 Asphalt Drum Mixing Plant

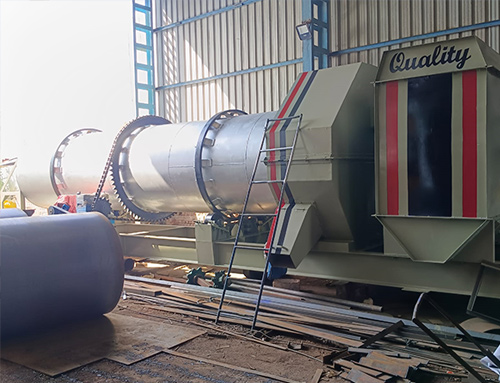

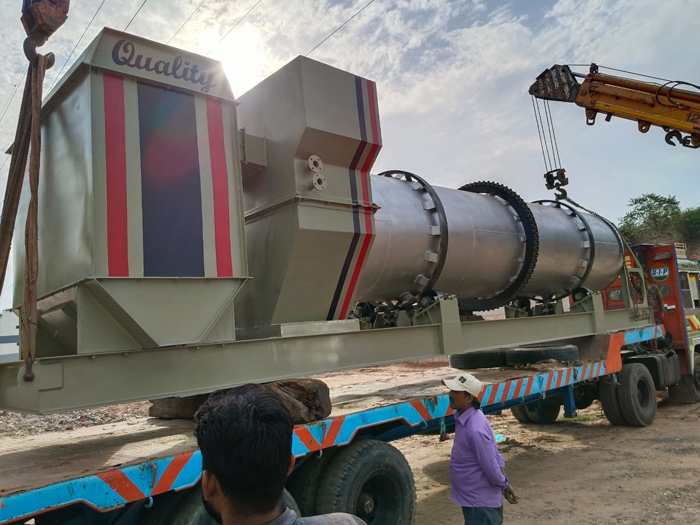

DRYING CUM MIXTURE UNIT: -

Insulated Dryer Cum Mixing Drum (Thermo Drum) Fitted With Pressure Jet Electronically Fired Oil Burner. The Drum Is Driven By Chain Drive Arrangement Cradle Type.

• Drying Cum Mixing Unit Having Shell Thickness - 10 MM
• Thermo Drum Diameter - 1520 MM
• Thermo Drum Length – 6800 MM
• Thermo Drum Drive Type - Chain Drive.
• Drier Drum Motor - 30 HP X 1 Nos.
• Multi Cone Primary Dust Collector: Cones - 19 Nos.
• Dust Output - By Motorized Worm Screw.
• Dust Collector Screw Motor - 2 HP X 1400 RPM.
• BURNER - Pressure Jet Electronically Fired Oil Burner.
• Burner Blower - 15 HP X 2800 RPM.

BURNER PUMPING STATION:-:-

• Motor- 2 HP X 1 Nos.
• Pump- 1000 LPH X 1 Nos.

COLD AGGREGATE FEEDER BINS (FOUR BIN FEEDER):-

Cold Aggregates Feeder Bin – 2 Nos.

• Cold Aggregates Feeder Bins - 4 Nos.
• 1 Nos. Gathering Conveyor With
• A.C. Variable Frequency Inverter Based Variable Speed Drives On Each Bin.
• Total Storage Capacity 60 Ton. (Each Bin 15 Ton).
• Bin Auxiliary Conveyor Belt Drive Motor - 2 HP X 4 Nos.
• Bin Auxiliary Conveyor Belt Size - 450 MM Width X 2.5 MTR X 3 Ply Bin
• Auxiliary Conveyor Gear Box - SMSR C 20 : 1
• Gathering Conveyor Belt Size - 600 MM X 21 MTR X 3 Ply.
• Gathering Conveyor Drive Motor - 5 HP X 1400 RPM.
• Gathering Conveyor Gear Box - SMSR D 20 : 1
• Bin Vibrator Motor - 1 HP X 1440 RPM.

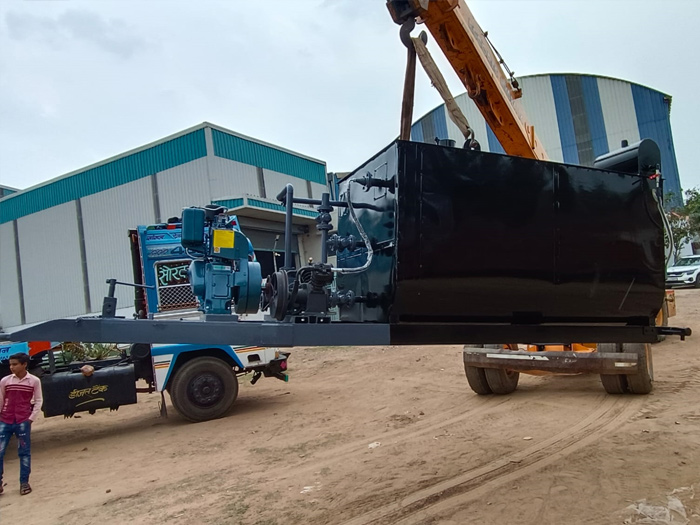

ASPHALT (BITUMEN) STORAGE TANK:-

Fully Insulated Bitumen Tank Fitted With Variable Speed A.C. Motor, Pumping Station And Automatic Control Pressure Jet Oil Burner With Thermostatic Temperature Controller For Asphalt Pump And Pipe Line.

Tank Capacity (Insulated) - 22 Ton.:-

• Bitumen Pump Drive Motor- 5 HP x 1400 RPM.
• Heating System- Direct Heating
• Bitumen Storage Tank Shape “U” Type.
• Heating Coil pipe diameter – 200 MM

MINERAL FILLER UNIT: -

AC Drive Complete With Gear Box And Blower For Lime/Cement/Dust.

• Drive Motor – 2 HP x 1400 RPM.
• Blower- 3 HP x 2800 RPM.

SLINGER CONVEYOR FOR FEEDING COLD AGGREGATE INTO DRYER DRUM:-

Cold Aggregates Feeder Bin – 2 Nos.

• Conveyor Drive Motor - 5 HP X 1440 RPM.
• Conveyor Gear Box - SMSR D 5 : 1
• Conveyor Belt Size - 500 MM X 3 Ply.
• Conveyor Inclination 14 - 15 Degrees.

LOAD OUT CONVEYOR FITTED WITH GOB HOPER & HYDRAULIC POWER PACK :-

• Conveyor Belt Size - 500 MM X 17900 MM X 3 Ply.
• Conveyor Drive Motor - 5 HP X 1400 RPM.
• Conveyor Drive Gear Box - SMSR D 13 : 1
• Gob Hoper Capacity: 1200 KG.
• Hydraulic Power Pack Motor - 3 HP.
• Conveyor Inclination 22 - 23 Degree.

POLLUTION CONTROL UNIT:-

Wet Scrubber Type Pollution Control Unit With High Efficiency Ventury, Exhaust Blower, Water Pump & Chimney.

• Water Pump – 3 HP X 2800 RPM.
• Water Spraying Nozzle - 4 Nos.

FUEL TANK :-

• Capacity – 5,000 LTR.

CONTROL PANEL BOARD WITH CABIN: -

(Can Be Operated In Auto/Semi/Auto/Manual Mode) Automatic Control Panel, With All AC Drive With Synchronization And Master Controls, Burner Controls.
