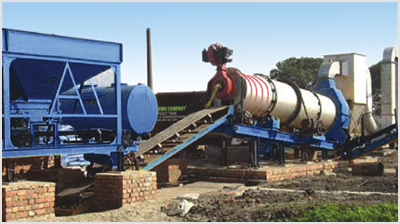

Asphalt Drum Mix Plant

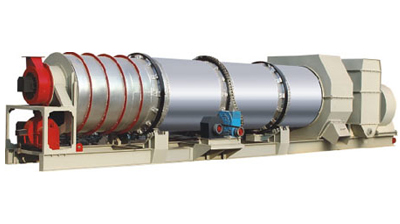

DRYING CUM MIXTURE UNIT:-

Insulated Dryer Cum Mixing Drum (Thermo Drum) Fitted With Pressure Jet Electronically Fired Oil Burner. The Drum is Driven By Chain Drive Arrangement Cradle Type.

• Drying Cum Mixing Unit Having Shell Thickness – 10 MM
• Thermo Drum Diameter - 1020 MM
• Thermo Drum Length – 5000 MM
• Drier Drum Motor - 10 HP x 1500 RPM.
• Exhaust Drive Motor - 10 HP x 1400 RPM.
• Multi Cone Primary Dust Collector. Cones - 10 Nos.
• Dust Output- By Motorized Worm Screw.
• Inclination - 5 Degree.
• BURNER - Pressure Jet Electronically Fired Oil Burner.
• Blower – 3 HP x 2800 RPM

BURNER PUMPING STATION:-

• Motor- 2 HP X 1 Nos.
• Pump- 600 LPH X 1Nos.

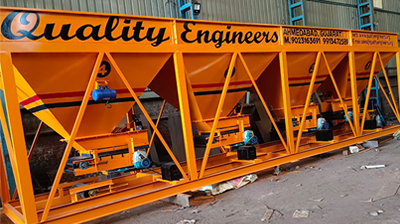

COLD AGGREGATE FEEDER BINS (TWO BIN FEEDER) :-

• Cold Aggregates Feeder Bin – 2 Nos.
• 1 Nos. Gathering Conveyor With
• A.C. Variable Frequency Inverter Based Variable Speed Drives On Each Bin.
• Total Storage Capacity - 20 M. Ton. (Each Bin 10 Ton)
• Bin Auxiliary Conveyor Belt Drive Motor - 2 HP X 2 Nos.
• Bin Auxiliary Conveyor Belt Size - 450 MM Width X 1.9 MTR X 3 Ply.
• Bin Auxiliary Conveyor Gear Box - SMSR C 20 : 1
• Gathering Conveyor Belt Size - 600 MM Width X 10 MTR X 3 Ply.
• Gathering Conveyor Drive Motor - 5 HP X 1400 RPM.
• Gathering Conveyor Gear Box- SMSR D 13 : 1
• Bin Vibrator Motor- 1 HP X 1440 RPM.

ASPHALT (BITUMEN) STORAGE TANK :-

Fully Insulated Bitumen Tank Fitted With Variable Speed A.C Motor, Pumping Station And Automatic Control Pressure Jet Oil Burner With Thermostatic Temperature Controller For Asphalt Pump And Pipe Line.

Tank Capacity (Insulated) – 10 Ton.:-

• Bitumen Pump With Drive Motor - 3 HP X 1400 RPM.
• Heating System - Direct Heating.
• Heating Coil Pipe Diameter - 200 MM.
• Bitumen Storage Tank Shape “U” Type.

LOAD OUT CONVEYOR FITTED WITH STORAGE SILO & HYDRAULIC POWER PACK :-

• Conveyor Belt Size - 500 MM X 15900 MM X 3 Ply.
• Conveyor Drive Motor - 3 HP X 1400 RPM.
• Conveyor Drive Gear Box - SMSR D 13 : 1
• Gob Hoper Capacity: 800 KG.
• Hydraulic Power Pack Motor - 2 HP.

FUEL TANK :-

• Capacity – 1000 LTR.

CONTROL PANEL WITH CABIN :-

(Can Be Operated In Auto/Semi-Auto/Manual Mode) Automatic Control Panel, With All AC Drive With Synchronization And Master Controls, Burner Controls.
