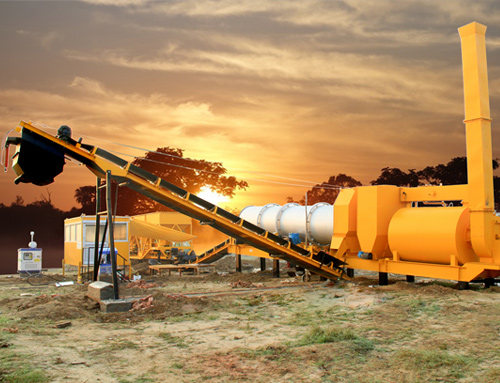

Asphalt Hot Mix Plant

DRYING CUM MIXTURE UNIT: -

Insulated Dryer Cum Mixing Drum (Thermo Drum) Fitted With Pressure Jet Electronically Fired Oil Burner.

The Drum Is Driven By Chain Drive Arrangement Cradle Type.

• Drying Cum Mixing Unit Having Shell Thickness - 10MM
• Thermo Drum Diameter - 1820 MM
• Thermo Drum Length - 7400 MM
• Thermo Drum Drive Type - Chain Drive.
• Drier Drum Motor - 35 HP X 1 Nos.
• Exhaust Drive Motor - 35 HP X 1400 RPM
• Multi Cone Primary Dust Collector: Cones - 19 Nos.
• Dust Output - By Motorized Worm Screw.
• Dust Collector Screw Motor - 2 HP X 1400 RPM.
• BURNER - Pressure Jet Electronically Fired Oil Burner.
• Burner Blower - 15 HP X 2800 RPM.

BURNER PUMPING STATION:-:-

• Motor- 2 HP X 1 Nos.
• Pump - 1000 LPH X 1 Nos.

COLD AGGREGATE FEEDER BINS (FOUR BIN FEEDER):

• Cold Aggregates Feeder Bins – 4 Nos.
• 1 Nos. Gathering Conveyor With
• A.C. Variable Frequency Inverter Based Variable Speed Drives On Each Bin.
• Total Storage Capacity – 60 Ton. (Each Bin 15 Ton)
• Bin Auxiliary Conveyor Belt Drive Motor - 2 HP X 4 Nos.
• Bin Auxiliary Conveyor Belt Size - 500 MM Width X 2.5 MTR X 3 Ply.
• Bin Auxiliary Conveyor Gear Box - SMSR C 20 : 1
• Gathering Conveyor Belt Size - 600 MM X 21 MTR X 3 Ply.
• Gathering. Conveyor Drive Motor - 5 HP X 1400 RPM.
• Gathering Conveyor Gear Box - SMSR D 20 : 1
• Bin Vibrator Motor - 1 HP X 1440 RPM.

ASPHALT (BITUMEN) STORAGE TANK:-

Fully Insulated Bitumen Tank Fitted With Variable Speed A.C. Motor, Pumping Station And Automatic Control Pressure Jet Oil Burner With Thermostatic Temperature Controller For Asphalt Pump And Pipe Line.

• Tank Capacity (Insulated) - 25 Ton.
• Bitumen Pump Drive Motor- 5 HP X 1400 RPM.
• Heating System - Direct Heating.
• Heating Coil Pipe Diameter - 200 MM
• Bitumen Storage Tank Shape “U” Type.

MINERAL FILLER UNIT:-

AC Drive Complete With Gear Box And Blower For Lime/Cement/Dust.

• Drive Motor – 2 HP x 1400 RPM.
• Blower - 2 HP x 2800 RPM.

SLINGER CONVEYOR FOR FEEDING COLD AGGREGATE INTO DRYER DRUM:-

• Conveyor Drive Motor- 5 HP X 1440 RPM.
• Conveyor Gear Box- SMSR D 5:1.
• Conveyor Belt Size- 600 MM X 3 Ply.
• Conveyor Inclination- 14 - 15 Degrees.

LOAD OUT CONVEYOR FITTED WITH GOB HOPER & HYDRAULIC POWER PACK:-

• Conveyor Belt Size - 500 MM X 17900 MM X 3 Ply.
• Conveyor Drive Motor - 7.5 HP X 1400 RPM.
• Conveyor Drive Gear Box – SMSR D 13 : 1
• Gob Hoper Capacity - 1500 KG.
• Hydraulic Power Pack Motor - 3 HP.
• Conveyor Inclination 22 - 23 Degree.

FUEL TANK:-

• Capacity – 10,000 LTR.

CONTROL PANEL BOARD WITH CABIN:-

(Can Be Operated In Auto / Semi – Auto / Manual Mode) Automatic Control Panel, With All AC Drives With Synchronization And Master Controls, Burner Controls.
